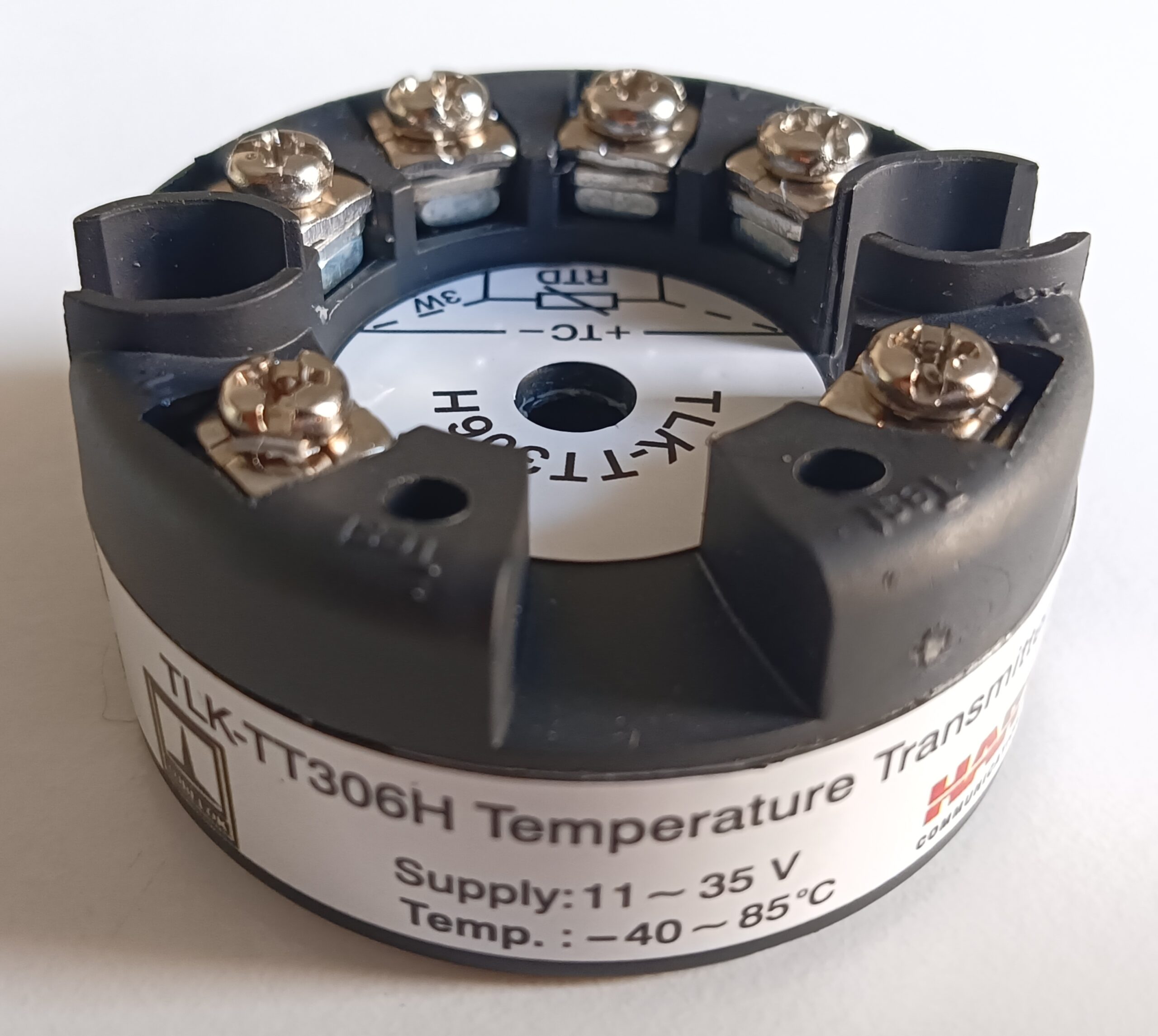

TLK - TT306H

TLK – TT306H

TLK- TT306 series temperature transmitter supports HART, FF, and PA protocols. It can be
widely used in the petroleum, chemicals, electricity, and metallurgical industries, etc.
TLK- TT306H HART temperature transmitter, using the HART technology, is a new generation of smart HART temperature transmitter and it is an indispensable field device for process control. TLK- TT306H integrates abundant functions and realizes not only general
measurement function but also complicated control strategy. TLK- TT306H uses digital
technology, so it can connect with many types of thermocouple and thermo resistive sensors.
It has wide range and simple interface between field and control room, which reduces the
expense of installation, operation and maintenance.

Category:

Description

• Damping: Range 0 to 32 seconds.
• Unit: The change of PV unit directly affects the variables associated with the
• unit, such as the upper and lower limits of the range, the upper and lower
• limits of the sensor, and so on. When modifying the unit, you cannot modify
• the upper and lower limits of the main variable range at the same me, and
• should be modified separately.
• The unit can be set to: °C, °F, R, K, mV, Ohm.
• Upper range: PV value corresponding to 20mA output current.
• Lower range: PV value corresponding to 4mA output current.
• Alarm type: high alarm and low alarm.
• Alarm value: When the alarm type is high alarm, it can be 21.75mA to 23.00mA.
