CD 600 Plus

CD 600 Plus

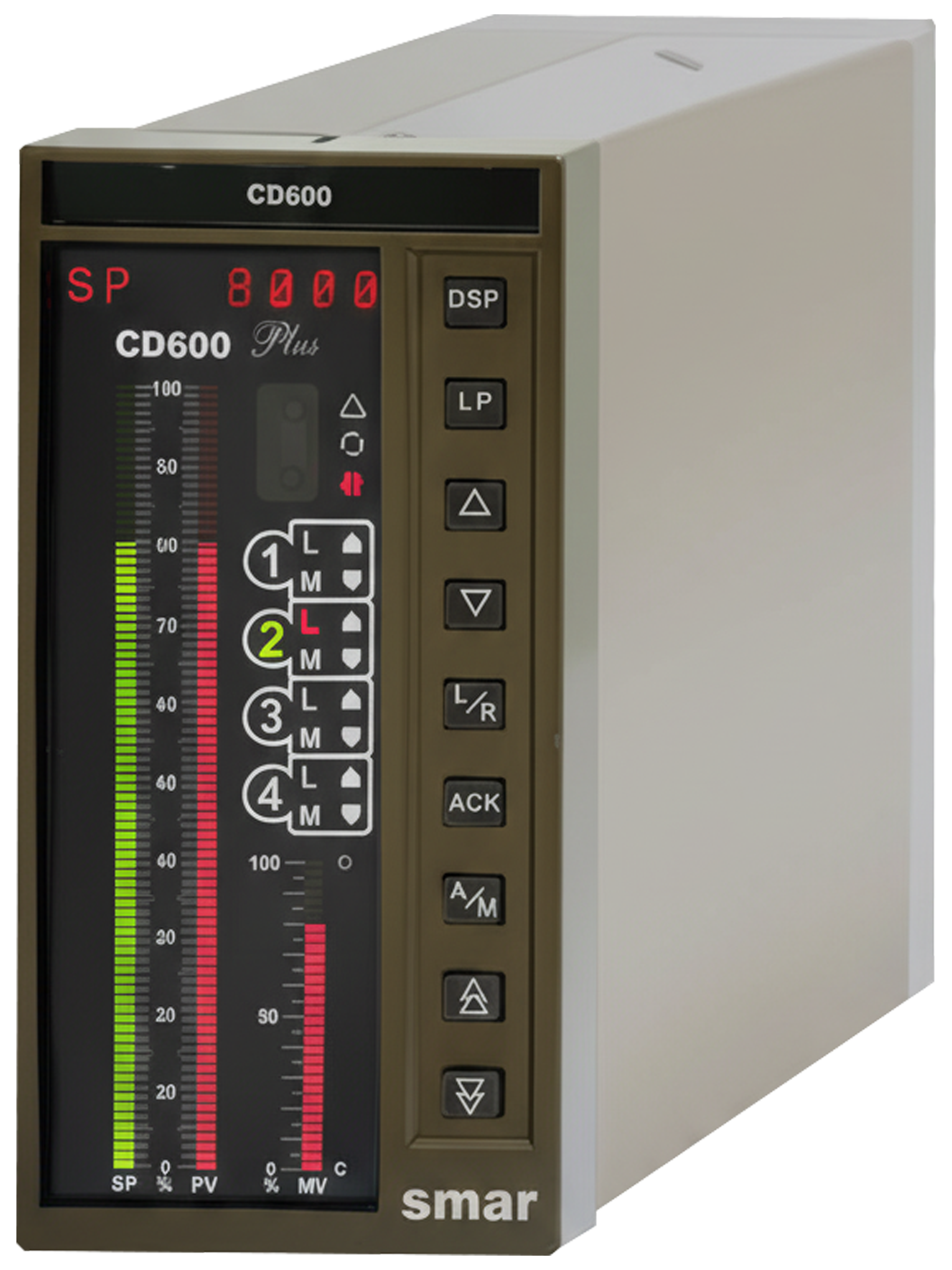

The CD600Plus is a versatile and reliable single module process controller. It is capable of simultaneously controlling up to 4 loops with up to 8 PIDs and sophisticated
strategies with function blocks. It has a powerful multiple I/O channel hardware
platform. In a single station, this high-end controller replaces as many as eight
traditional controllers, numerous signal and wiring conditioning modules. The high
reliability of the CD600 has earned a great reputation from a wide range of high-end
users.

Categories: ,

Description

• Up to four independent control loops with up to eight PID functions;
• 8 analogue inputs, 8 analogue outputs, 8 discrete inputs and 8 discrete outputs;
• Built-in 24Vdc 200 mA power supply for up to 8 field devices;
• More than 120 functions blocks are available for user programming;
• Adjustment of control options through the front panel;
• OPC server serial and/or Ethernet for HMI;
• Configuration tools available for download at no cost: CONF600PLUS, TAGLIST;
• Works with the ENET-710 for CDBUS/TCP communication.
