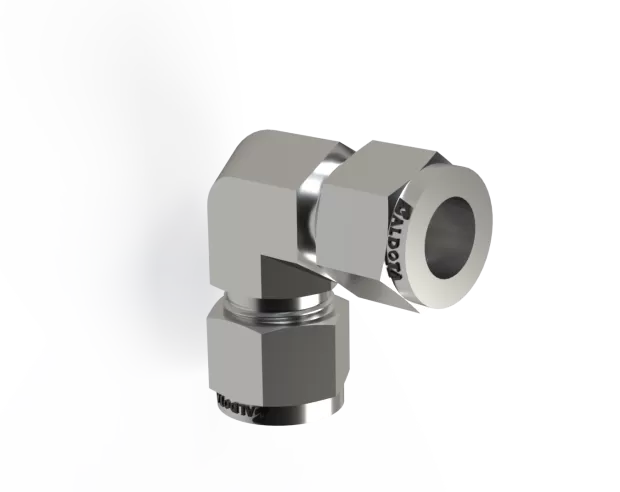

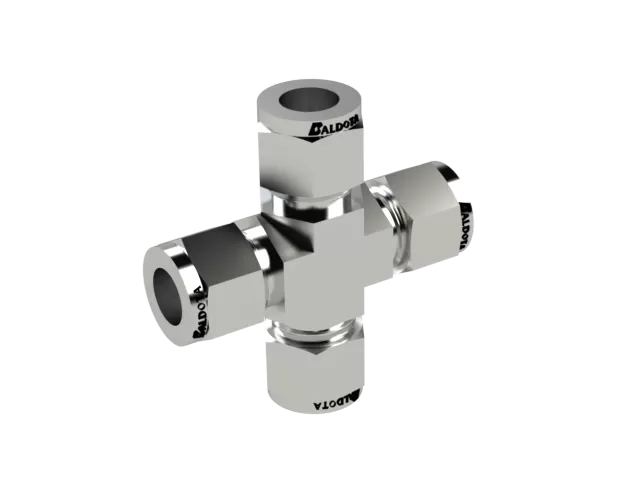

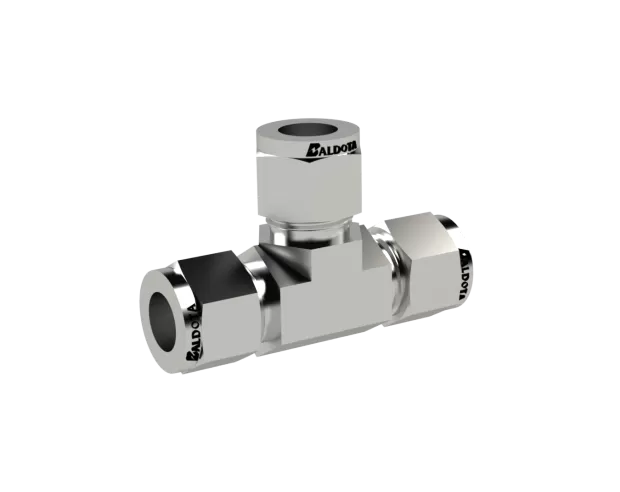

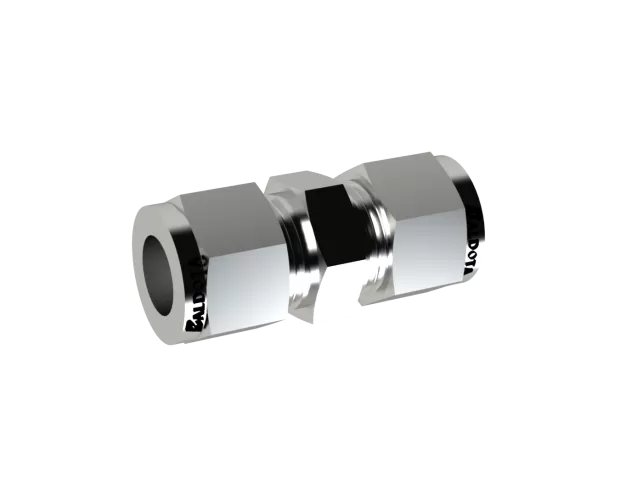

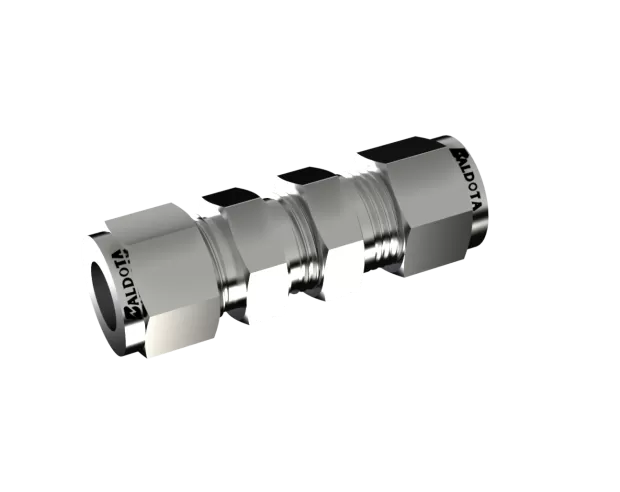

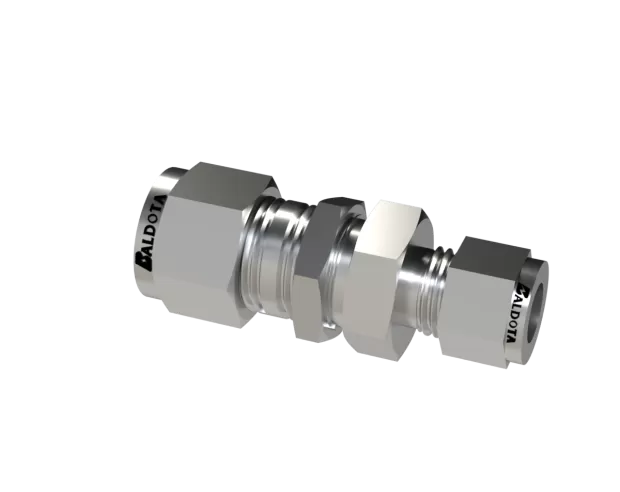

Tube to Tube Connection

• BALDOTA- TUBELOK Tube Fittings is a two ferrule design comprising of four components – Nut, Front Ferrule, Back Ferrule and Body.
• Size : Tube -1/16” to 1”  & 4mm to 50mm OD. Pipe  -1/16” to 2” NPT, BSP, BSPT, B/W, S/W.
• Materials : 316/ 304/ 316L/ 304L Stainless Steel, Brass & Carbon Steel. Materials such as Aluminum, Monel, Hastelloy, Inconel can also be used in case of special orders.
• Heat Traceability : Stainless steel 316 Tube fittings are heat code traceable.
• Pressure Rating : upto 10000 psig (Depending on size)
• Temperature Rating : upto 428° C
• End Conn : NPT, ISO/BSP, UNF, BSPT and Metric threads.
• Re-usable and High quality.
• Heavy vibration, vacuum and impulse controlled through excellent leak-free sealing.
• No torque transferring to connective tubing during installation.
• Gaugable.
