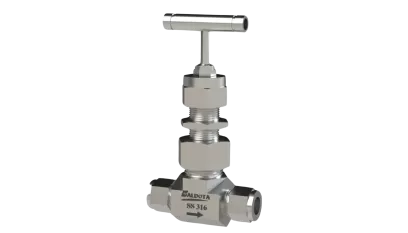

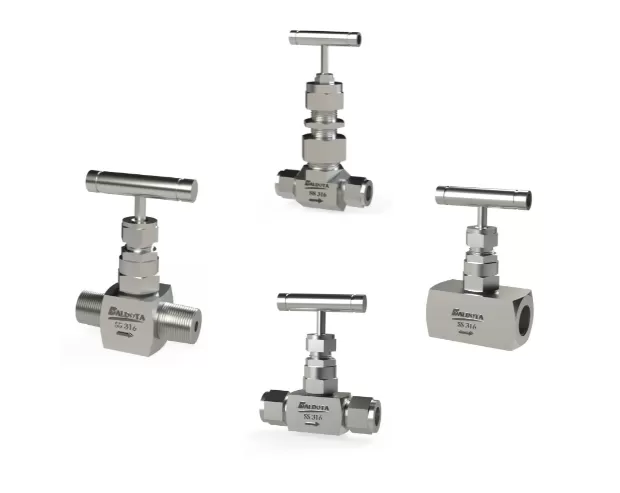

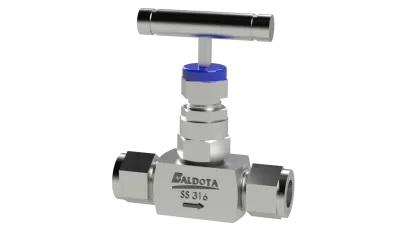

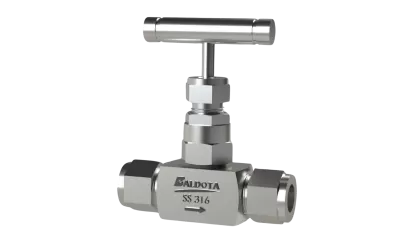

Needle valve
- Flow Patterns: Straight Or Angle flow patterns
- Panel Mounting: Available
- Robust Build: Crafted from cold drawn bar stock for durability.
- Available Stem Tips: Vee, Regulating & Soft Tip with PCTFE.
- Safety Features: Fail-safe back seating seal and panel mounting options.
- Leak Tight Shut off
- High Pressure Compatibility: Withstands elevated pressures:
Stainless Steel: Up to 6000 psig (414 bar)
Alloy C-276: Up to 6000 psig (414 bar)
Alloy 400: Up to 5000 psig (345 bar)
Titanium: Up to 3500 psig (241 bar)
Brass: Up to 3000 psig (207 bar)
- Temperature Compatibility: Suitable for:
PTFE: -65°F to 450°F (-54°C to 232°C)
PEEK: -65°F to 500°F (-54°C to 260°C)
Graphite: -65°F to 1200°F (-54°C to 649°C)
- Stem Features:
Vee & Regulating stem can be used up to 450°F (232°C)
Vee & Regulating stem in Brass can be used up to 400°F (204°C)
Soft seat stem with PCTFE stem tip can be used up to 200°F (93°C)
